product purpose

RANK1
Traditional synthetic fibers-POLYESTER, POLYETHYLENE, NYLON, etc.
RANK2
High-strength fiber-HMPE (HIGH MODULUS POLYETHYLENE), LCP (LIQUID CRYSTAL POLYMER), etc.
Rotation
Resistant wire ropes are designed in such a way that the rotational force of the outer strands is partially counteracted by the rotational force of the inner strands or core when the rope is subjected to a load.
RANK1
Traditional synthetic fibers-POLYESTER, POLYETHYLENE, NYLON, etc.
RANK2
High-strength fiber-HMPE (HIGH MODULUS POLYETHYLENE), LCP (LIQUID CRYSTAL POLYMER), etc.

ROPE_FIBER Double Braid Rope

페이지 정보

profile_image
작성자 DSR
댓글 0건 조회 11,807회 작성일 21-04-29 14:20

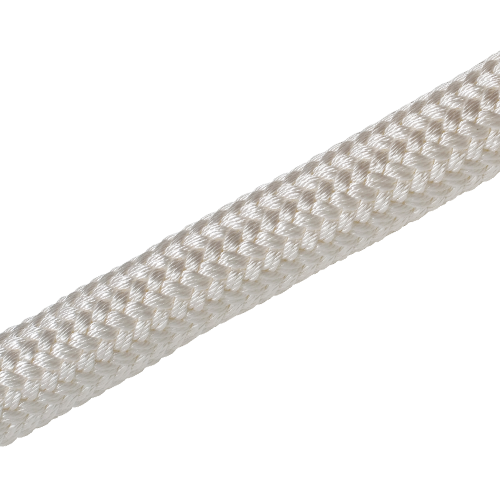

Double Braid Rope

SYNTHETIC FIBER ROPE

#ROPE#RANK1

본문

The inner core uses nylon or polyester to protect the inner core and braided the outer rope in a proprietary DSR method.
The surface is round and smooth, so it has excellent resistance to friction.

Polyester double braided rope

-Composition: Polyester fiber
-Specific gravity: 1.38 (does not float in water)
-Melting point: 265 ℃

Nylon double braided rope

-Composition: Nylon Fiber
-Specific gravity: 1.14 (does not float in water)
-Melting point: 220℃
-Elongation: 45%
-Moisture content: 2~5%
